TIG Stack: Using Telegraf, InfluxDB and Grafana on Aiven

Learn how to set up performance monitoring by using the TIG stack (Telegraf, InfluxDB, Grafana) to visualize the health status of your laptop.

francesco-tisiot

Francesco Tisiot

|RSS Feed

Senior Developer Advocate at Aiven

Here's the overall process:

  1. Create a time series storage and reporting platform with InfluxDB and Grafana
  2. Set up Telegraf to collect and distribute metrics
  3. Visualise your metrics with Grafana

We'll create the whole monitoring pipeline in minutes with a few commands in our terminal to report CPU metrics from a Mac. The stack we're using is this:

  • Telegraf for metrics collection and distribution
  • InfluxDB for data storage
  • Grafana for analysis and visualisation.

To create some test load on your system, please open your favourite random applications, or open 10+ browser tabs playing the greatest hits of the amazing Albano Carrisi (you'll thank me for this later ;))!

1. Create a time series storage and reporting platform

InfluxDB will be our metrics storage. Create an instance with the following Aiven CLI command in our terminal:

avn service create --plan startup-4 \ --service-type influxdb \ --cloud google-europe-west3 \ demo-influx

The above creates an InfluxDB instance (-t influxdb) named demo-influx on Google's cloud region europe-west3 with a startup-4 plan. To review InfluxDB plans and associated costs, you can check the pricing page.

With a similar command, create a Grafana instance, changing only the type of instance (-t grafana) and the instance name (demo-grafana):

avn service create --plan startup-4 \ --service-type grafana \ --cloud google-europe-west3 \ demo-grafana

The last piece of setup needed on Aiven's side is the integration between Grafana and InfluxDB. Set it up with the following command:

avn service integration-create \ -t datasource \ -s demo-grafana \ -d demo-influx

You already created a datasource with the demo-grafana instance pointing to demo-influx. You're now ready to receive the metrics.

2. Set up Telegraf to collect and distribute metrics

Telegraf is an open source tool enabling easy metrics collection and distribution. To install it, you can follow these instructions. If, like me, you are on a Mac, you can use Homebrew for example, with the following command in the terminal:

brew install telegraf

Once Telegraf is installed, configure it to collect some metrics and push them to the demo-influx instance. Get InfluxDB's service URI with the following command:

avn service get demo-influx --format '{service_uri}'

The service URI is in the form https+influxdb://avnadmin:<PASSWORD>@<HOSTNAME>:<PORT>/defaultdb. Note down the <HOSTNAME>, <PORT> and <PASSWORD> parameters.

Next, configure Telegraf by creating a file named telegraf.conf with the following content:

[global_tags] [agent] interval = "10s" hostname = "Francesco.Mac" [inputs.cpu] totalcpu = true [outputs.influxdb] url = "https://<HOST>:<PORT>" database = "defaultdb" username = "avnadmin" password = "<PASSWORD>" precision = "10s" skip_database_creation = true

Here you are creating a Telegraf agent that will report metrics over a 10 second interval, using the CPU Input Plugin to report the totalcpu stats.
The [outputs.influxdb] plugin sends the collected metrics to the influxDB endpoint defined in the url parameter.

Finally, you're setting skip_database_creation = true, since the defaultdb database already exists in the instance.

It's time to start Telegraf with the following command in the terminal:

telegraf -config telegraf.conf

If no errors arise, you're now sending your CPU metrics to InfluxDB.

3. Visualise your metrics

The data is now getting stored in the demo-influx instance. We could query it via InfluxQL, but especially for time-series metrics, a line graph is usually much better for showing the current status and recent trends. Creating such a visualisation in Grafana is achievable in just a few steps, with the first one being... understanding how to connect to Grafana itself.

Retrieve the connection parameters with the following command in another terminal window:

avn service get demo-grafana --format '{service_uri_params}'

The output is similar to the one shown below. It includes the Grafana hostname, port and the randomly generated password for the default avnadmin user.

{ "host": "<HOSTNAME>", "password": "<PASSWORD>", "port": "<PORT>", "user": "avnadmin" }

Now open your browser to https://<HOSTNAME>:<PORT> and use the avnadmin user and related <PASSWORD> to log in.

Click Explore !explore icon and select the pre-created aiven-influxdb-demo-influx datasource that points to the previously created InfluxDB instance.

Let's monitor the CPU usage by selecting the cpu metric group in the FROM area. The metric we want to plot is the usage_user which we can select in the field() section. The settings should look like this:

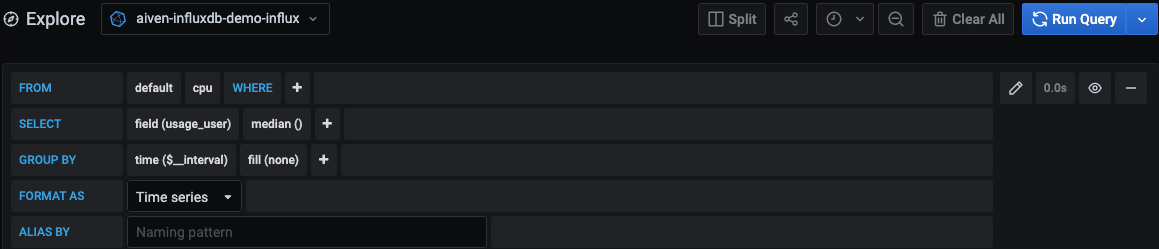

CPU metrics settings

Now click the Run Query button to visualise the usage_user graph. The result should be similar to the following image, which shows CPU usage consistently remaining between 10% and 30% on my Mac.

cpu graph

It's now time to change some settings:

  • Click on the time range icon time range and choose to display only the last 5 minutes of data.
  • Click on the arrow next to the Run Query button, and select 10s as refresh interval.

Now your graph should refresh every 10 seconds, showing the last 5 minutes dataset, as in the image below (speeded up).

cpu graph

Wrapping up

Congratulations, you just created your first monitoring pipeline!

This first visualisation uses only the basics of Grafana; should the next challenge be to create something more advanced or setup an alert? It's up to you. In the meantime here are some resources you might find useful:

  • Telegraf an open source server agent for collecting and sending metrics
  • InfluxDB used for metrics storage
  • Grafana used to create stunning visualisations

P.s. I hope you enjoyed Albano Carrisi!

--

Not using Aiven services yet? Sign up now for your free trial at https://console.aiven.io/signup!
